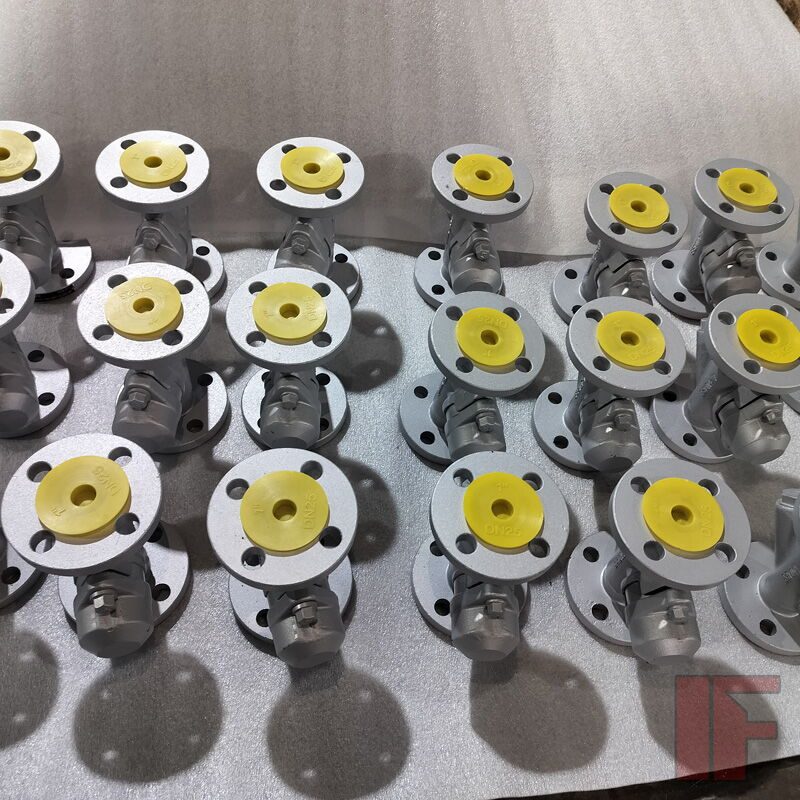

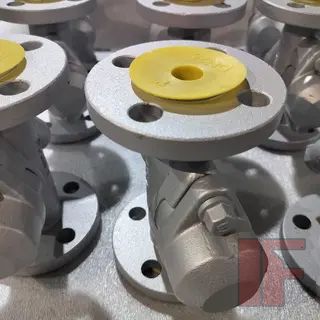

Thermostatic Steam Trap Manufacturer in India

Efficient steam-system drainage depends on removing condensate and non-condensable gases without unnecessarily losing live steam. A thermostatic steam trap responds primarily to the temperature difference between steam and cooler condensate, making it useful where controlled condensate discharge and air removal are required. Speciality Valve is a topmost Thermostatic Steam Trap Manufacturer in India, offering steam-trap configurations for steam mains, process equipment, tracing systems and condensate drainage applications. Where Thermostatic Traps Are Used? Thermostatic traps are particularly useful where the temperature of the discharged fluid is an important part of the drainage requirement. 1. Steam distribution lines 2. Steam tracing systems 3. Heat exchangers 4. Process heating equipment 5. Drip legs 6. Steam separators 7. Condensate drainage points 8. Equipment requiring air removal during start-up The required trap should be selected according to condensate load, inlet pressure, back pressure and the temperature at which condensate needs to be discharged. Thermostatic Steam Trap Specifications: 1. Valve Type: Thermostatic Steam Trap 2. Nominal Size: DN15 to DN50 3. Pressure Class: Class 150 to Class 300 4. Pressure Range: PN16 to PN40 5. Body: Carbon Steel / Stainless Steel 6. Cover: Stainless Steel 7. Sealing Disc: Stainless Steel 8. Cap: Stainless Steel 9. End Connection: Configuration dependent Materials: 1. Body: Carbon steel or stainless steel 2. Cover: Stainless steel 3. Sealing Disc: Stainless steel 4. Cap: Stainless steel 5. Internal Components: Corrosion-resistant materials selected according to the trap design 6. Gaskets and Seals: Material selected according to steam temperature and chemical compatibility The material combination should be checked against condensate chemistry, operating temperature and the possibility of corrosion in the return system. Benefits of Thermostatic Operation: 1. Responds to temperature differences 2. Supports automatic condensate discharge 3. Can assist air removal during start-up 4. Compact construction 5. Suitable for selected tracing applications Speciality Valve provides steam-trap configurations matched to the operating conditions and drainage requirements of the installation. Speciality Valve is the best Thermostatic Steam Trap Manufacturer in India, get in touch for a technically configured solution.

Category

Other Industrial Items

Subcategory

Miscellaneous

Condition

New

Quantity

1

Pricing Type

Negotiable

State

Tamil Nadu

City

Coimbatore
